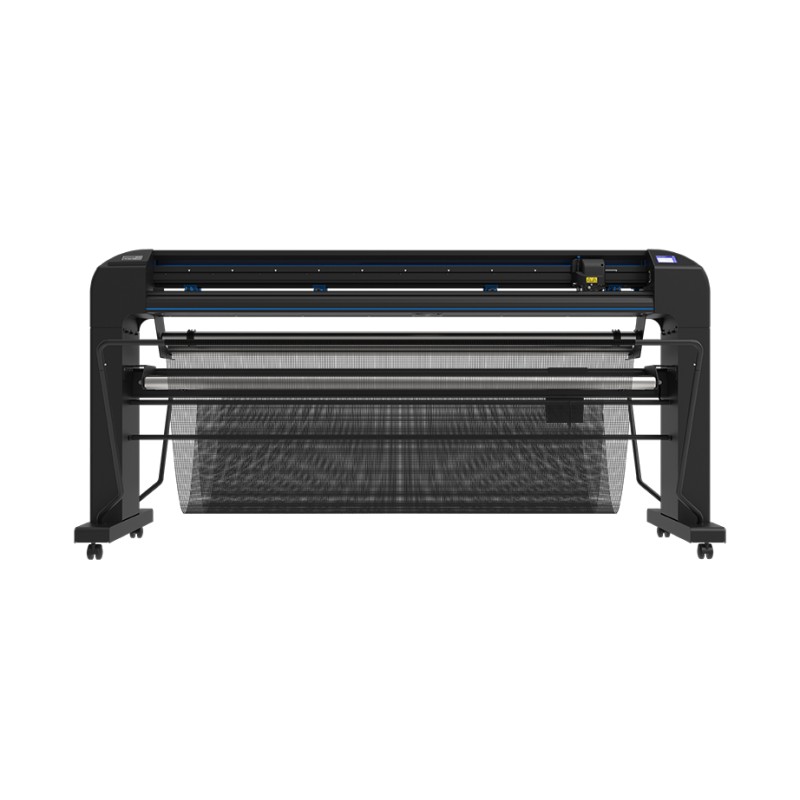

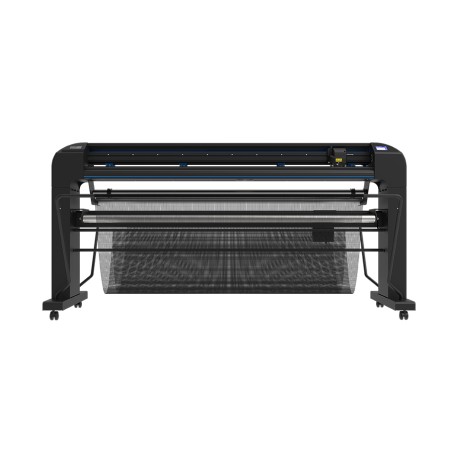

Summa S3Class T160

Model: Summa S3 T160

• Cut Type: True Tangential with Drag Knife Cutting Mode Capability
• Cut Widths: 6.7 to 62.2 in (17 to 158 cm) (Oversized Mode: +/- 2.8 in)
• Cut Speed: Up to 56 inches (1414 mm) per second diagonal
• Acceleration: Up to 4.25 G diagonal
• Accuracy: 0.2% of movement or 0.010 in, whichever is greater
• Tracking Performance:
  • Up to 40 ft max. within guaranteed specifications for media less than 30 in wide
  • Up to 13 ft max. within guaranteed specifications for media larger than 30 in wide
• Cut Force:
  • Drag Knife: Up to 400 grams
  • Tangential Knife: Up to 1000 grams
• Display Languages: English, French, German, Dutch, Italian, Spanish, Polish, Czech, Latvian, Portuguese
• Connectivity: USB, Ethernet, WiFi
• Power Requirements: 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum
• Dimensions: 225 (W) x 69 (D) x 111 (H) cm (88.6 x 27.2 x 43.7 in)
• Shipping Weight: 114 kg (251 lbs)
• Operating Temperature: 15˚ to 35˚C (59˚ to 95˚F)
• Standard Accessories:
  • WinPlot or MacSign Cut Software
  • CutterControl Parameter Software
  • CD with Manuals and Drivers
  • Quick Start Guide
  • Power Cable and USB Cable
  • Media Guide Flanges (set of 2)
  • 1 Spare Fuse
  • Blade Holder
  • Standard Nose Piece and Thick Material Nose Piece
  • 2 Standard 36° Tangential Blades
  • 1 Thick 60° Blade
  • Tangential Drag Holder
  • 1 Standard 36° Drag Blade
  • T Pen Holder and 1 Ball Point Pen
  • 2 Cut-off Razor Blades
  • Blade Insertion Tool
  • Stand and Basket
• Warranty (EU): Two-year parts and labor limited warranty, toll-free technical support
  Note: In "Oversized" mode, the tracking performance is no longer guaranteed.
