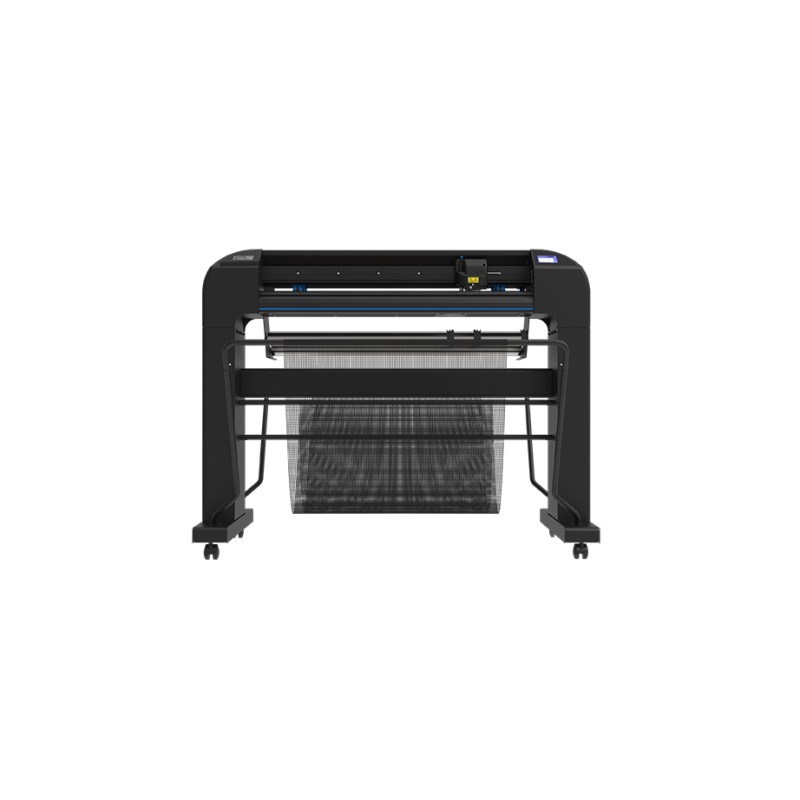

Summa S3Class D75

Model S3D75

4.490,00 € tax excl.

MODEL	Summa S3 D75
CUT TYPE	Drag knife with TurboCut and Tangential Emulation Modes
CUT WIDTHS	29.2 in. (74.2 cm) (Oversized Mode: +/2.36 in)
CUT SPEED	All S3 models cut at speeds up to 56 inches (1414 mm) per second diagonal
ACCELERATION	Up to 3 G diagonal
ACCURACY	0.2 % of movement or 0.010 in, whichever is greater
TRACKING PERFORMANCE	26 ft max. within guaranteed specifications for media less than 30 in. 13 ft max. within guaranteed specifications for media larger than 30 in.
CUT FORCE	Up to 600 grams of cutting force
DISPLAY LANGUAGES	English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese
CONNECTIVITY	USB; Ethernet, Wifi (region dependent)
POWER REQUIREMENTS	100-240 VAC, 50/60 Hz
DIMENSIONS	44.1 (W) x 27.7 (D) x 43.8 (H) in. 112 (W) x 70 (D) x 111 (H) cm
SHIPPING WEIGHT	152 lbs (69 kg)
OPERATING TEMPERATURE	59˚ to 95˚F (15˚ to 35˚C)
STANDARD ACCESSORIES	WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Blade Holder, Standard Nose Piece, 2 Standard 36° Tangential Blades, Thick Material Nose Piece, 1 Thick 60° Blade, Tangential Drag Holder, 1 Standard 36° Drag Blade, T Pen holder, 1 Ball point pen, 2 Cut-off Razor Blades, Blade insertion tool, Stand and Basket.
WARRANTY (EU)	Two-year parts and labor limited warranty, toll-free technical support
