Flat table Summa F 2630 View larger

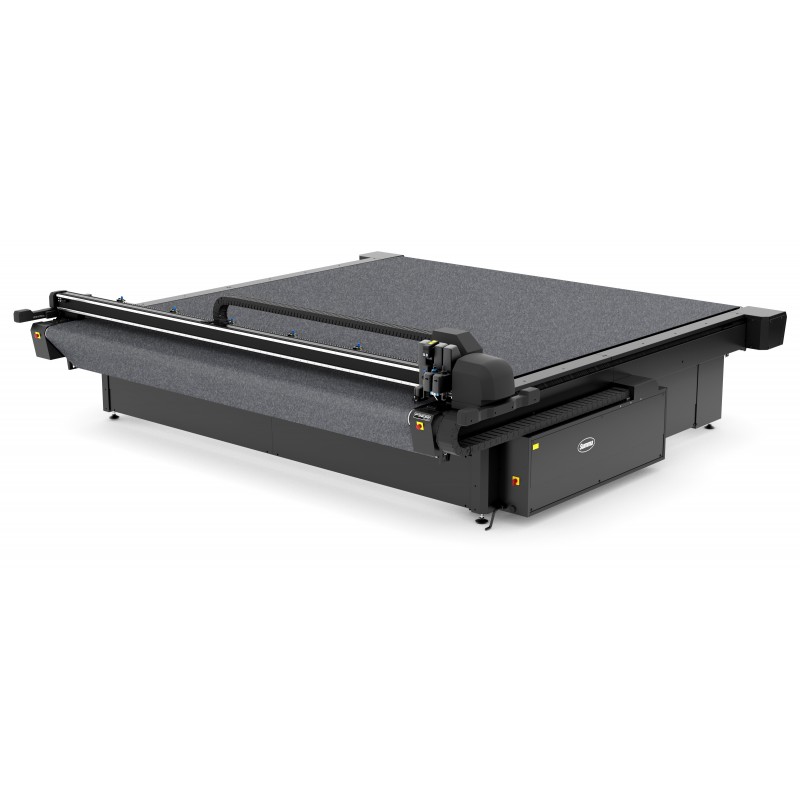

Flat table Summa F 3232

F3232

F2630 Logo
MODELSF1612 LogoF1330 LogoF1832 LogoF2630 Logo
CUTTING AREA104 in. (265 cm) wide x 120 in. (305 cm) long; up to 164 ft. (50 m) long in multi panel
MEDIA WIDTHUp to 106 in. (270 cm)
MULTI PANEL*1968 in. (5000 cm) *Media clamps and roll-feed and/or conveyor belt system are required
REPEATABILITYWithin ± 0.05 mm on plots
ACCURACY0.05 % of move or 0.05 mm, whichever is greater
SPEEDUp to 39 in./sec (1000 mm/sec)
ACCELERATIONUp to 1 G
CLEARANCE*1.9 in. (5 cm) *Distance between vacuum table and Y-beam. Not taking into account the thickness of a cutting matt or conveyor belt
MAXIMUM ALLOWED FORCESVertical: 200 Newton, Horizontal: 200 Newton
MAXIMUM TABLE LOAD10 lb/ft2 (50 kg/m²)
CONNECTIVITYUSB
POWER REQUIREMENTS3 Phase 208V+N or 3 Phase 230V or 3 Phase 400V+N
DIMENSIONS137 x 161 x 48 in. (349 x 410 x 122 cm)
WEIGHT3970 lbs (1800 kg)
OPERATING TEMPERATURE59˚ to 95˚F (15˚ to 35˚C)
STANDARD ACCESSORIESDrag Module, Conveyor System, Roll-Feed System, Safety Beam System, Pneumatic Pack, wireless controller w/ charger, standard 36˚ blade holder, 1 standard blade, 1 fiber-tip pen, hex screwdriver (4mm), hex screwdriver (2.5mm), USB cable (3 meter), USB extension cable (0.5 meter), media guide flanges (set of 2), CD w/ manuals and drivers, SummaFlex Pro.
OPTIONAL ACCESSORIESTangential Module, F Series Routing System, HF Routing System, Electronic Oscillating Tool, Pneumatic Oscillating Tool, Kiss Cutting Tool, Single Edge Cutout Tool, Double Edge Cutout Tool, Heavy Duty Cutout Tool, Creasing Tools, V-Cut Tools, production software; Automated Depth Control left (Upgrade Kit).
